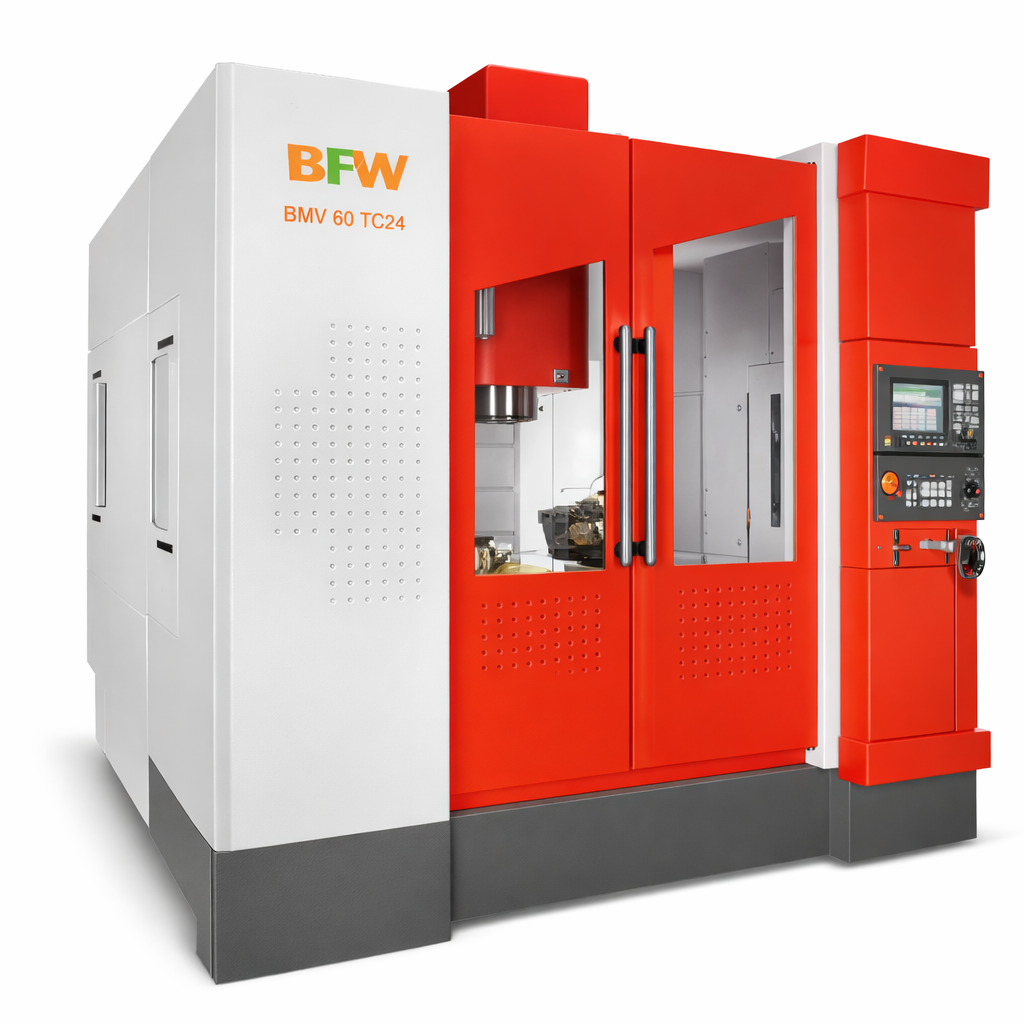

VMC BFW BMV 60TC24
- Manufacturer: Bharat Fritz Werner Ltd, India
- Model: BMV 60 + BF
- Control: Fanuc 0i MF – PLUS
- Table Size: 1250 × 600 mm
- X Axis Travel: 1050 mm
- Y Axis Travel: 610 mm
- Z Axis Travel: 610 mm
- Spindle Taper: BT-40 (24 Tools)
- Spindle Power: 11 / 15 kW
- 4th Axis: UCAM Rotary Table – Ø250 mm
- Coolant Pressure: 16 bar

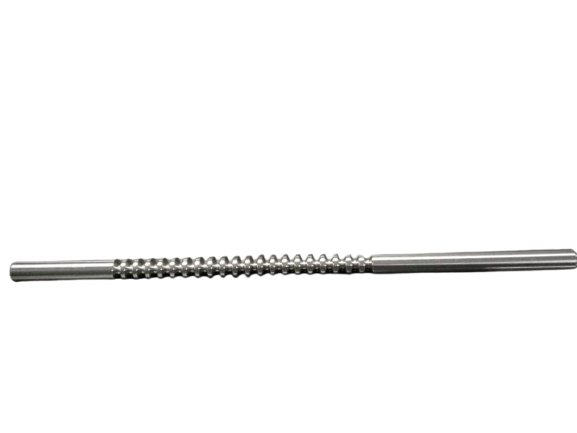

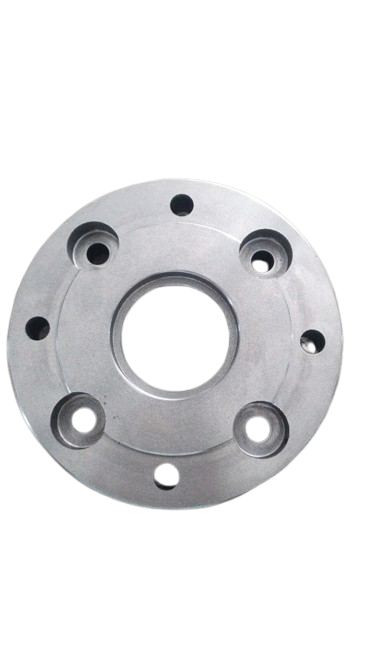

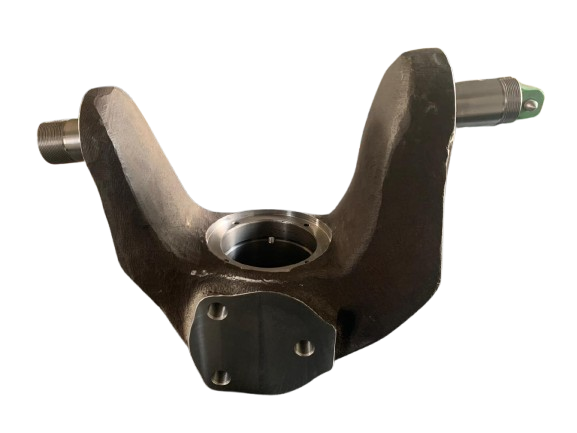

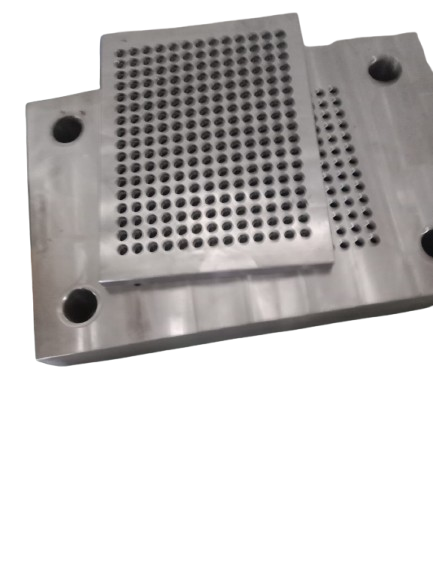

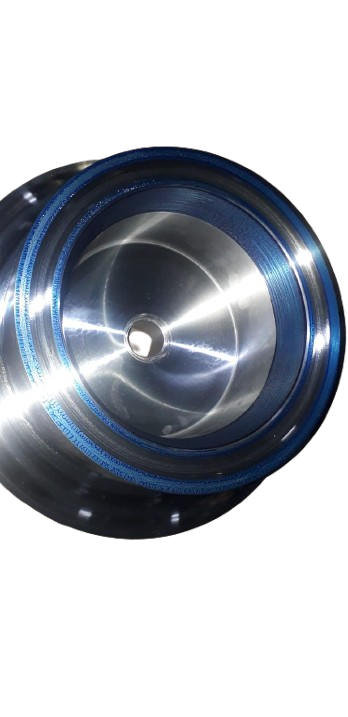

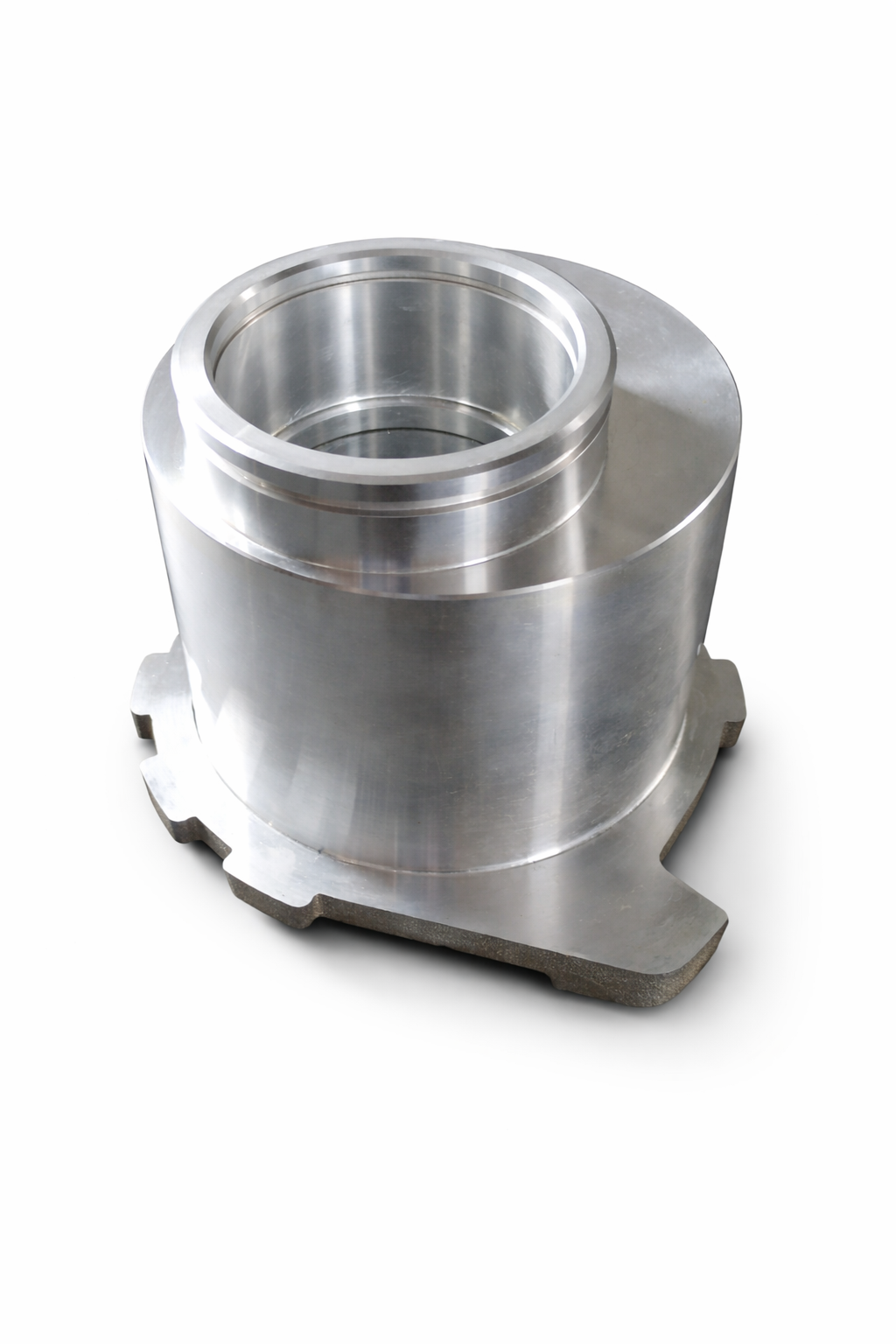

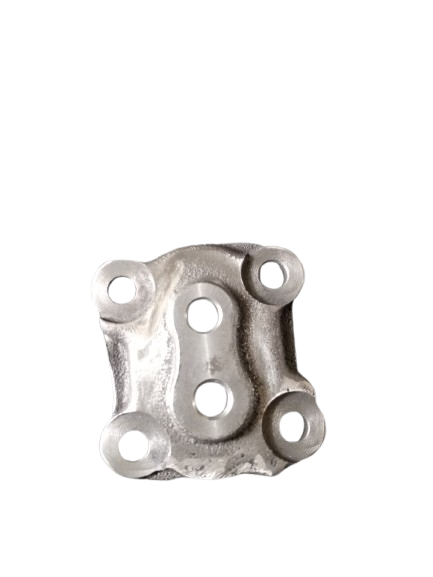

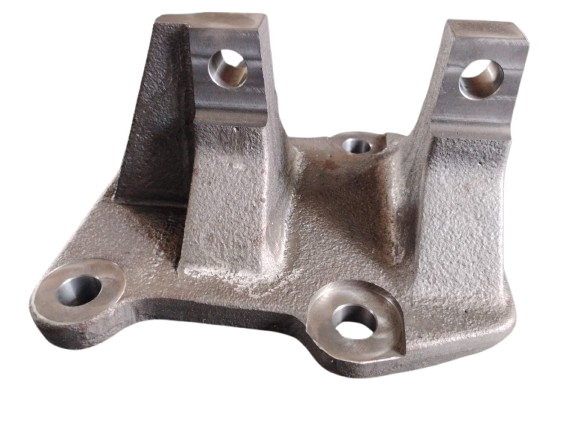

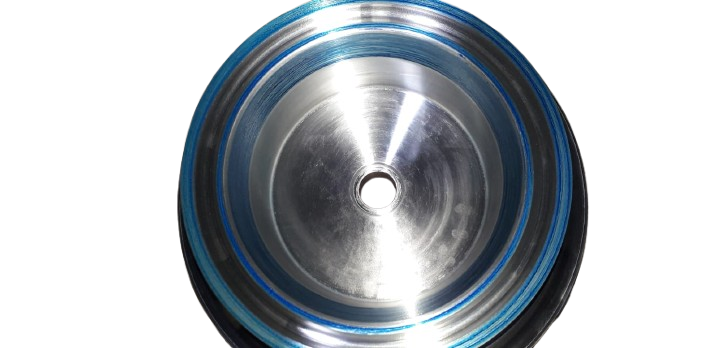

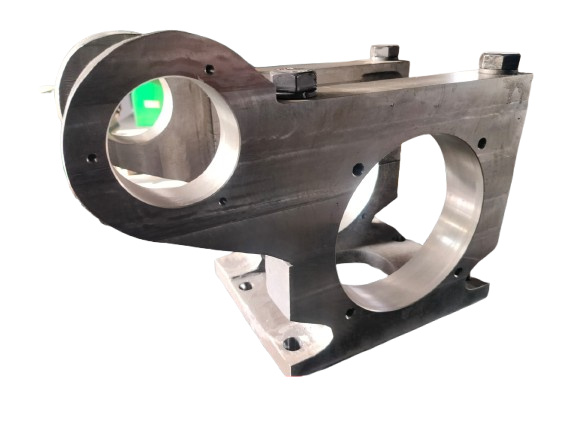

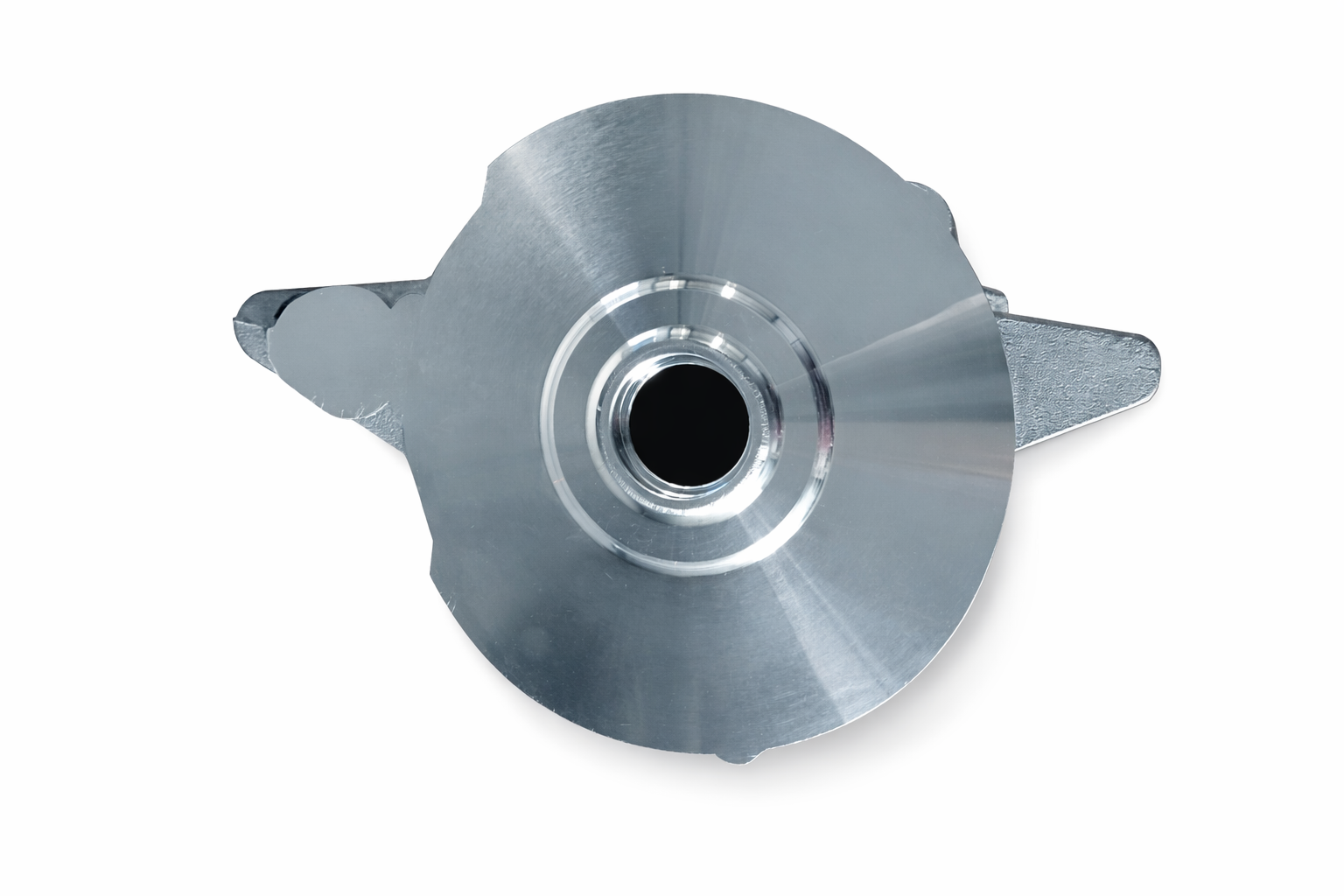

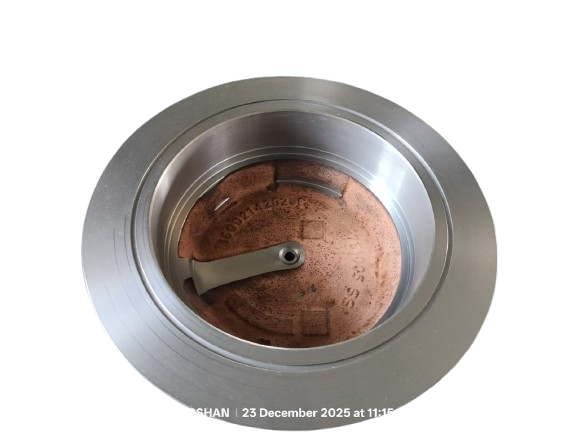

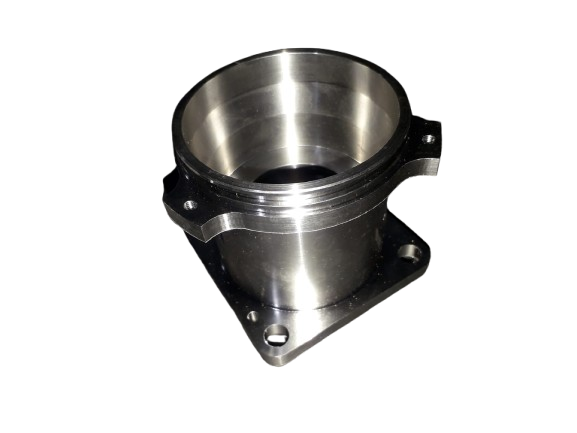

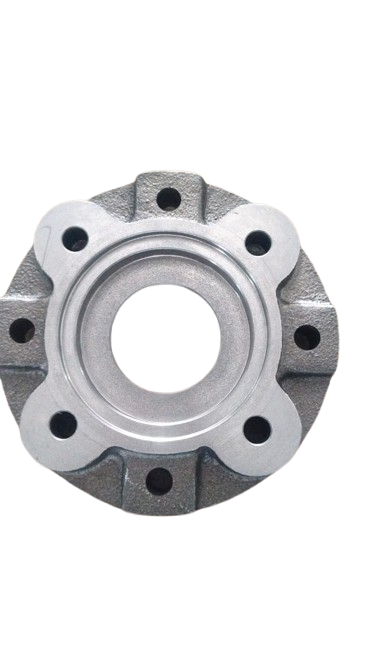

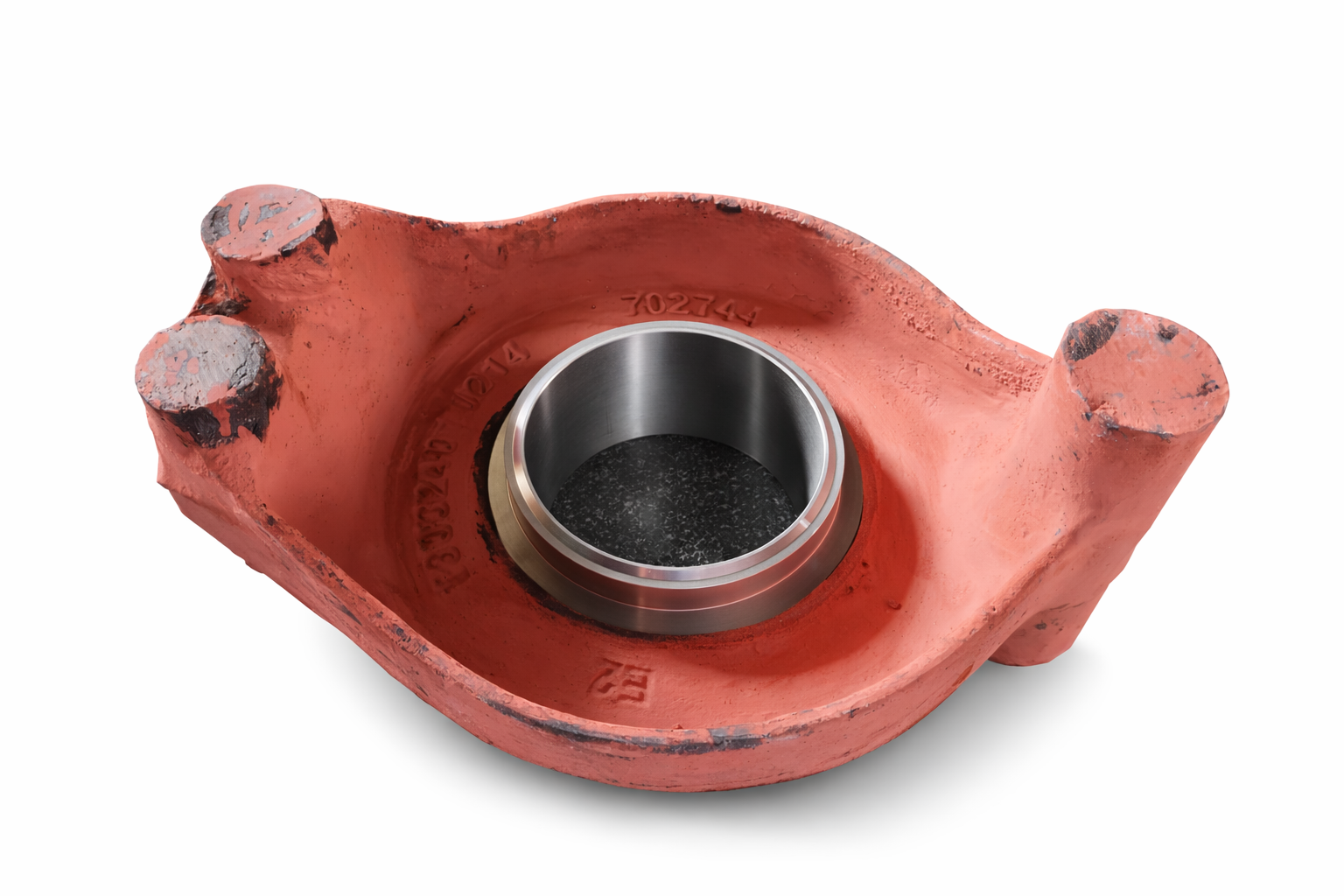

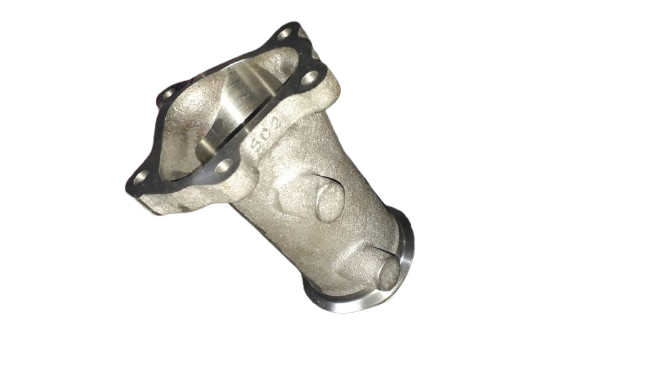

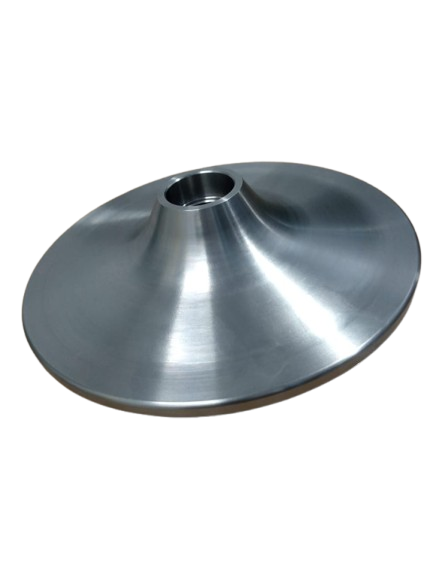

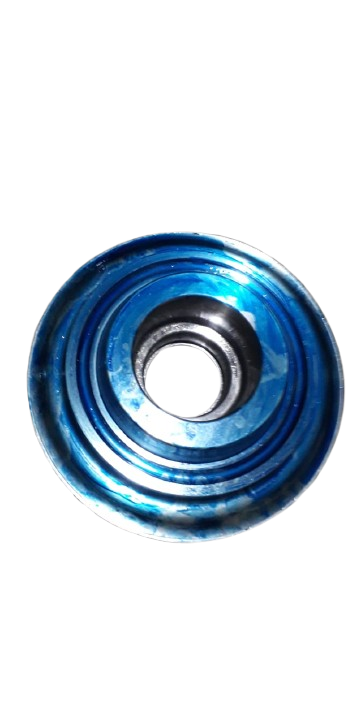

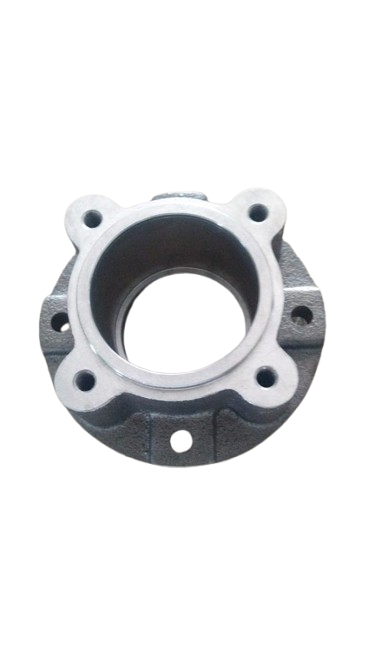

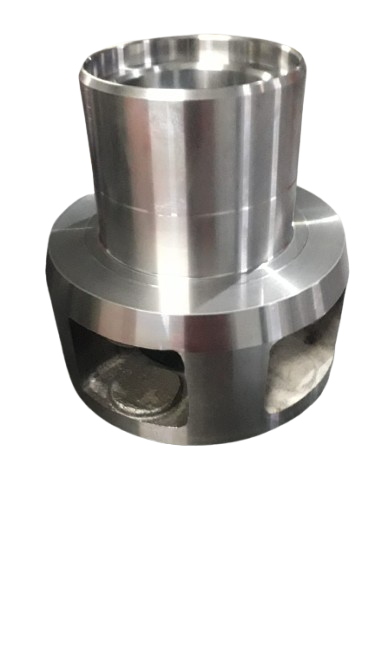

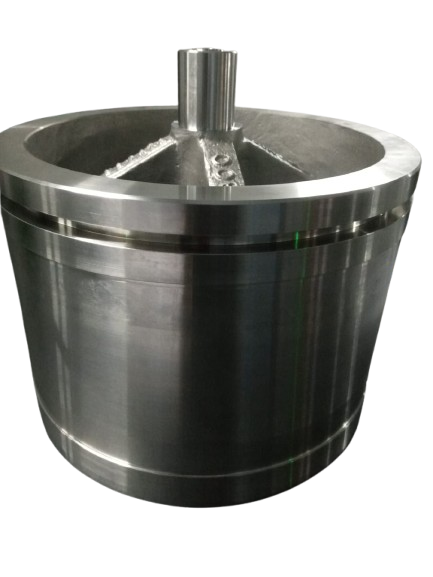

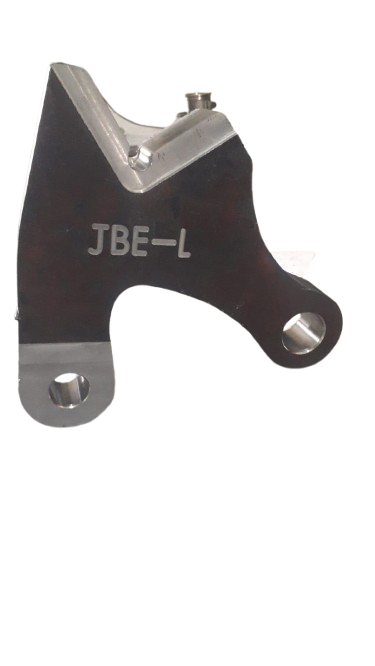

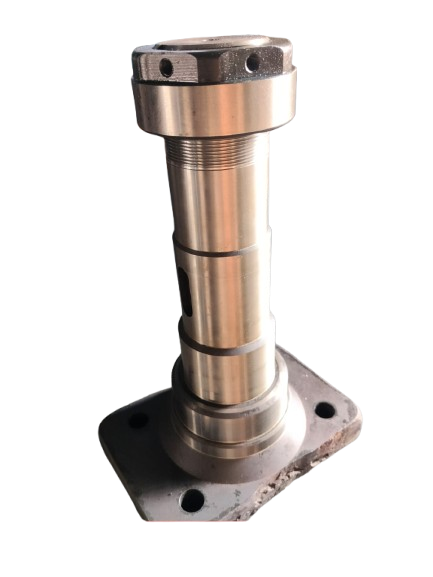

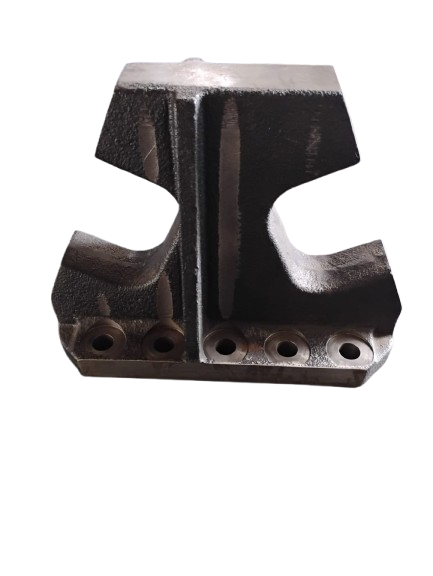

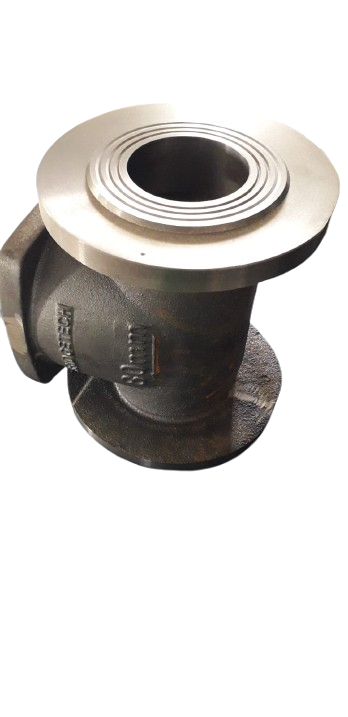

VMC Machine – Components View
.png)
.png)
.png)
.png)
.png)
.png)
Click image to view machine images
CNC Turning Facility
- Manufacturer: Lakshmi Machine Works Ltd, India
- Controller: Fanuc
- Swing Over Bed: 510 mm
- Chuck Dia (Max): 250 mm
- Max Turning Dia: 320 mm
- Max Turning Length: 720 mm
- Spindle Speed: 3500 rpm
- Spindle Motor Power: 9 / 11 kW
- Cross Travel (X-axis): 185 mm
- Longitudinal Travel (Z-axis): 720 mm
- No. of Stations: 8 Nos
- Tool Shank Size: 25 × 25 mm
- Max Boring Bar Dia: 40 mm
- Turret Indexing: Bi-directional
CNC Turning Facility – Machine Images

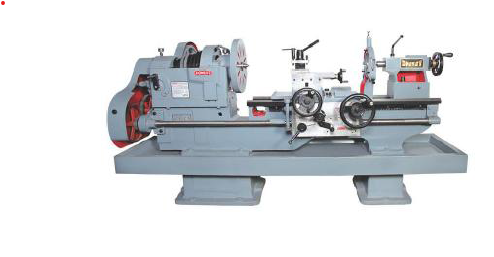

Heavy Duty Lathe – 9 Feet
- Machine Name: Heavy Duty Lathe – 9 Feet
- Manufacturer: Taytaniyam (MT)
- Model: BFV 60 + TV24
- Motor Power: 5 H.P
- Chuck Size: 14” / 355 mm
- Centre Height: 12” / 305 mm
- Swing Over Bed: 78” / 2000 mm
- Between Centres: 66” / 1650 mm
- Max Bar Capacity: 3” / 80 mm
Measuring Resources
| S.No | Description | Range | Make |
|---|---|---|---|
| 1 | Plunger Dial | 0.01 & 0.001 mm | Mitutoyo |
| 2 | Digital Vernier | 0 – 300 mm | Mitutoyo |
| 3 | Depth Vernier | 0 – 300 mm | Mitutoyo |
| 4 | Ordinary Vernier | 0 – 600 mm | Mitutoyo |
| 5 | Ordinary Vernier | 0 – 300 mm | Mitutoyo |
| 6 | Ordinary Vernier | 0 – 1000 mm | Mitutoyo |
| 7 | Bore Dial | 18 – 150 mm | Mitutoyo |
| 8 | Outside Micrometer | 0 – 150 mm | Mitutoyo |
| 9 | Outside Micrometer | 150 – 300 mm | Mitutoyo |
| 10 | Vernier Height Gauge | 0 – 2000 mm | Mitutoyo |

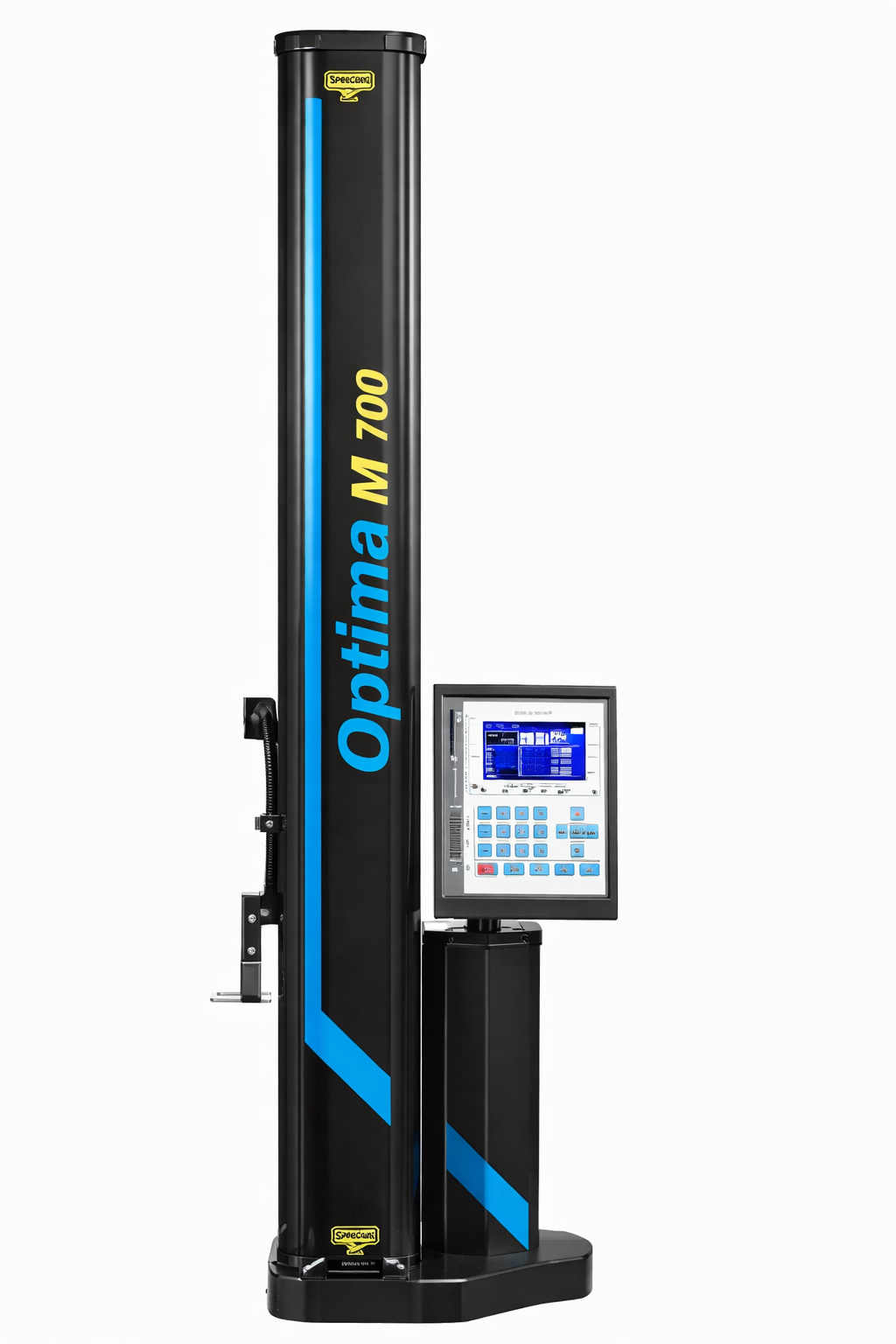

- Electronica Height Master (Model: OPTIMA-M, 0–700 mm)
- Sanjeev – Granite Surface Table
